    Flip Triangles icon Flip Face Edge

    The Flip Face Edge action swaps the triangle orientation on the selected face(s) with four sides. This reverses the direction of the middle edge in a quad.

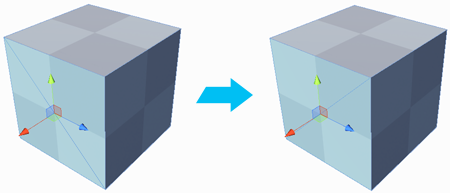

    Edge intersects top-left to bottom right on side of cube before; bottom-left to top-right after flip

    Use this to smooth ridges in quads with varied height corners.

    Note: This only works on quads (four-sided polygons).

    This action is often called Turn Edges in other 3D modeling applications.

    Tip: You can also launch this action from the ProBuilder menu (Tools > ProBuilder > Geometry > Flip Face Edge).
