Assigning icons

Unity allows you to assign custom icons for GameObjects and scripts. These icons display in the Scene view, along with built-in icons for items such as Lights and Cameras. Use the Gizmos menu to control how icons are drawn in the Scene view.

GameObject Select Icon button

To change the icon for a GameObject, select the GameObject in the Heirarchy window or Scene view, then click the Select Icon button (the blue cube, highlighted with a red square in the image below) in the Inspector window to the left of the GameObject’s name.

The GameObject Select Icon button (here highlighted with a red square) in the Inspector window
The GameObject Select Icon button (here highlighted with a red square) in the Inspector window

When you assign an icon to a GameObject, the icon displays in the Scene view over that GameObject (and any duplicates made afterwards). You can also assign the icon to a Prefab to apply the icon to all instances of that Prefab in the Scene.

Script Select Icon button

To assign a custom icon to a script, select the script in the Project window, then click the Select Icon button (the C# file icon, highlighted with a red square in the image below) in the Inspector window to the left of the script’s name.

The Script Select Icon button (here highlighted with a red square) in the Inspector window
The Script Select Icon button (here highlighted with a red square) in the Inspector window

When you assign an icon to a script, the icon displays in the Scene view over any GameObject which has that script attached.

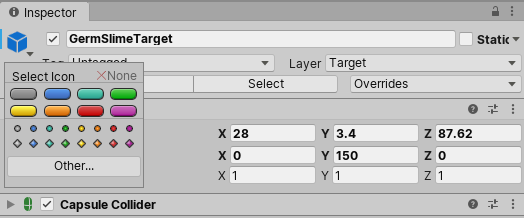

The Select Icon menu

Whether you are assigning an icon to a GameObject or a Script, the pop-up Select Icon menu is the same:

The Select Icon menu has built-in icons. Click on an icon to select it, or click Other… to select an image from your project Assets to use as the icon.

The built-in icons fall into two categories: label icons and image-only icons.

Label icons

Assign a label icon to a GameObject or script to display the name of the GameObject in the Scene view.

A GameObject with a label icon assigned
A GameObject with a label icon assigned

Image-only icons

Image-only icons do not show the GameObject’s name. These are useful for assigning to GameObjects that may not have a visual representation (for example, navigation waypoints). With an icon assigned, you can see and click on in it the Scene view to select and move an otherwise invisible GameObject.

A yellow diamond icon assigned to multiple invisible GameObjects
A yellow diamond icon assigned to multiple invisible GameObjects

Any Asset image in your project can also be used as an icon. For example, a skull and crossbones icon could be used to indicate danger areas in your level.

A red exclamation mark image has been assigned to a script. The icon is displayed over any GameObjects which have that script attached.
A red exclamation mark image has been assigned to a script. The icon is displayed over any GameObjects which have that script attached.

Note: When an Asset’s icon is changed, the Asset itself is marked as modified and therefore picked up by version control systems.
