EditorGUI.Vector2Field

Suggest a change

Success!

Thank you for helping us improve the quality of Unity Documentation. Although we cannot accept all submissions, we do read each suggested change from our users and will make updates where applicable.

Close

Submission failed

For some reason your suggested change could not be submitted. Please <a>try again</a> in a few minutes. And thank you for taking the time to help us improve the quality of Unity Documentation.

Close

Cancel

Declaration

public static Vector2 Vector2Field(Rect position, string label, Vector2 value);

Declaration

public static Vector2 Vector2Field(Rect position, GUIContent label, Vector2 value);

Parameters

position Rectangle on the screen to use for the field.
label Label to display above the field.
value The value to edit.

Returns

Vector2 The value entered by the user.

Description

Makes an X and Y field for entering a Vector2.

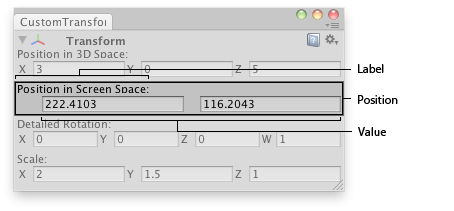

Vector2 field in an Editor Window.

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEditor;

// Editor window that shows the detailed rotation (X,Y,Z and W components), // the position in 3D space and position in Screen space of the selected // transform.

class CustomTransformInspector : EditorWindow { bool showing = true; Vector4 rotationComp;

[MenuItem("Examples/GameObject detailed inspector")] static void Init() { CustomTransformInspector window = (CustomTransformInspector)EditorWindow.GetWindow(typeof(CustomTransformInspector)); window.Show(); }

void OnInspectorUpdate() { Repaint(); }

void OnGUI() { var currObj = Selection.activeTransform;

showing = EditorGUI.InspectorTitlebar(new Rect(0, 0, position.width, 20), showing, currObj, showing); if (showing) { if (currObj) { currObj.position = EditorGUI.Vector3Field(new Rect(3, 15, position.width - 6, 20), "Position in 3D Space:", currObj.position);

EditorGUI.Vector2Field(new Rect(3, 50, position.width - 6, 20), "Position in Screen Space:", Camera.main.WorldToScreenPoint(currObj.position));

rotationComp = EditorGUI.Vector4Field(new Rect(3, 85, position.width - 6, 20), "Detailed Rotation:", QuaternionToVector4(currObj.localRotation)); currObj.localRotation = ConvertToQuaternion(rotationComp);

currObj.localScale = EditorGUI.Vector3Field(new Rect(3, 120, position.width - 6, 20), "Scale:", currObj.localScale); } else { EditorGUI.DropShadowLabel( new Rect(3, 15, position.width, 20), "Select an Object to inspect"); } } }

Quaternion ConvertToQuaternion(Vector4 v4) { return new Quaternion(v4.x, v4.y, v4.z, v4.w); }

Vector4 QuaternionToVector4(Quaternion q) { return new Vector4(q.x, q.y, q.z, q.w); } }
