Handles.DrawSolidArc

Parameters

Description

Рисует круглый сектор ("кусок пирога") в 3D пространстве.

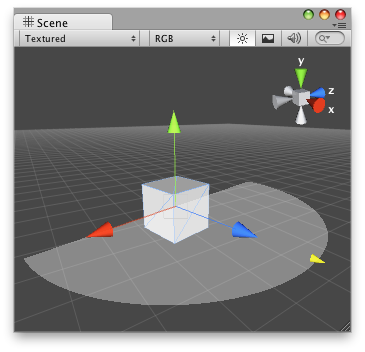

Solid Arc in the Scene View.

// Create a 180 degrees wire arc with a ScaleValueHandle attached to the disc
// that lets you modify the "shieldArea" var in the WireArcExample.js

@CustomEditor (SolidArcExample)
class DrawSolidArc extends Editor {
    function OnSceneGUI () {
        Handles.color = Color(1,1,1,0.2);
        Handles.DrawSolidArc(target.transform.position,
                target.transform.up,
                -target.transform.right,
                180,
                target.shieldArea);
        Handles.color = Color.white;
        target.shieldArea =
        Handles.ScaleValueHandle(target.shieldArea,
                        target.transform.position + target.transform.forward*target.shieldArea,
                        target.transform.rotation,
                        1,
                        Handles.ConeHandleCap,
                        1);
    }
}

И скрипт, прикрепленный к данному маркеру:

// SolidArcExample.js

var shieldArea : float = 5;
